What are the classification and basic functions of glass edging machine

作者： 时间：2022-01-11 11:26:38 阅读：389

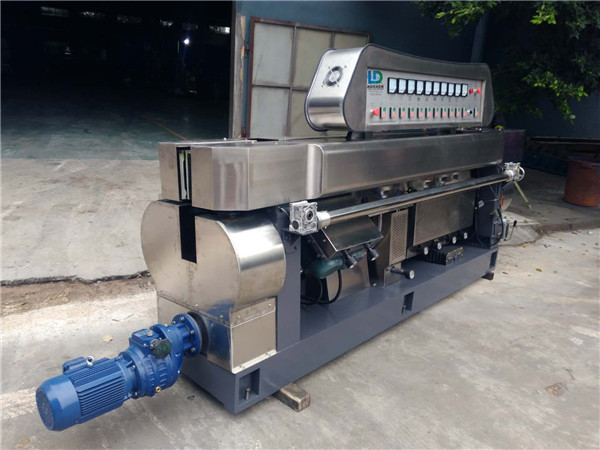

Glass straight edge grinding machine

The straight edge machine is used for grinding and polishing the bottom edge and edges of flat glass. The front plate adopts special telescopic pressing plate, and the grinding head carriage adopts integral type

Unilateral grinding

Unilateral grinding

The tail sliding plate has the advantages of good rigidity, small vibration, easy debugging, high precision and so on. Generally, there are 4 grinding heads / 8 grinding heads / 9 grinding heads / 10 grinding heads and straight edge machines.

Glass multistage edging machine

The multi-stage edge grinding machine is suitable for grinding straight edges and 45 ° edges and corners of flat glass with different sizes and thicknesses. It integrates rough grinding, fine grinding, polishing, chamfering and other processes

Profiling mill

Profiling mill

The angle can be adjusted arbitrarily between 0 ° - 45 °, the feed speed and feed rate can be adjusted arbitrarily during grinding, the front guide rail can be adjusted to change the thickness of the processed glass, and the touch screen is equipped to display the angle and chamfer width. Various parameters of the front chamfer can be set more accurately during automatic grinding. Generally, there are 9 grinding heads / 10 grinding heads multi-stage edging machines.

Glass beveling machine

Beveling machine is mainly used for processing straight beveled edge and round bottom edge of flat glass. The grinding head adopts Shanghai famous brand motor with high precision and low energy consumption, and the main drive adopts non-linear motor

Bilateral grinding

Bilateral grinding reducer adjustment, synchronous belt conveying, the rear chain plate adopts forged thickened steel plate and special process heat treatment. The front and rear guide rail inserts are made of super wear-resistant materials and strict processing technology, which reduces the friction force with the pressing plate, effectively enhances the service life of the chain plate and inserts, and can meet the service requirements for a long time even without lubrication. There are also various lifting beam beveling machines, including front beam lifting and rear beam lifting. The front beam lifting is mainly used. The representative manufacturer is Goode glass machinery, specializing in the production of lifting beam beveling machines and the through grinding of large and small pieces of glass.

Generally, there are 9 grinding heads / 10 grinding heads / 11 grinding heads beveling machines, which are divided into large piece beveling machines and small piece beveling machines. The minimum processing size of large piece beveling machines is 100 x100mm, the maximum beveling width is generally 35mm, and the angle is 3-25 °; The minimum processing size of small piece beveling machine is 30 X30MM, the maximum beveling width is generally 15mm, and the angle is 3-25 °. With the improvement of market processing requirements, glass machinery manufacturers have developed and produced lifting beveling machines in recent 2 years, with a minimum size of 30x30mm, a processing angle of 0-45 °, and a maximum beveling width of 35mm; Once the machine was exhibited at the China glass exhibition, it was booked by many customers at home and abroad.

Glass round edge grinding machine

The machine is suitable for grinding straight-line round edges and duckbill edges of flat glass with different sizes and thicknesses. Use grinding wheel set for peripheral grinding, rough grinding, fine grinding and polishing

Profiled mill

The special-shaped grinding is completed at one time. The glass thickness is adjusted by the front guide rail, and the speed is adjusted arbitrarily by the stepless reducer, which has stable speed change and high accuracy. Generally, there are 6 grinding heads / 8 grinding heads and round edge grinding machines.

Glass double straight edge grinding machine

It is suitable for grinding double straight line flat edge, rough grinding and polishing of flat glass at one time. The sliding of grinding head base adopts double linear rolling guide rail and double ball screw transmission to achieve stable moving speed, eliminate moving clearance, reduce resistance and wear and ensure repeated positioning. The PLC control system sets the processing parameters through the interface to complete the processing at one time. The transmission belt drive adopts variable frequency motor speed control, constant power and constant torque output, stable and reliable. Pneumatic automatic compensation device is adopted for polishing. It is especially suitable for the processing of furniture glass and building glass. Generally, there are 16 grinding heads / 20 grinding heads / 26 grinding heads / 28 grinding heads, double straight edge grinding machines and bilateral grinding machines

Abrasive belt mill

Abrasive belt edging machine has high processing efficiency, but the price is relatively high. It is suitable for large tempered glass plants. Small bilateral edging machines (such as the early 2 grinding head, 4 grinding head and the current 6 grinding head and 8 grinding head) are equipped with glass turntable, glass cleaning machine and other equipment to form a production line.

Glass double round edge grinding machine

The machine adopts PLC control system to set processing parameters through the interface to complete the rough grinding, fine grinding and polishing of double round edges at one time. The variable frequency motor adjusts the processing speed, double linear guide rail and double screw guide rail structure, so that it has the characteristics of convenient operation, simple structure, accurate and stable processing size, fast processing speed and so on. Generally, there are 16 grinding heads / 20 grinding heads / 26 grinding heads / 28 grinding heads and double round edge grinding machines.

Automatic glass special-shaped edging machine

The equipment is applied to 1mm-12mm glass of any shape. The minimum processing size is 100mm * 80mm. It can process round and straight edges. One machine can realize multiple processes including edge grinding, chamfering and polishing. The processing of glass products is in place in one step, safe and reliable, high automation and high processing efficiency.
